Quick answer: Choose an edge-lit exit sign when a project needs a slimmer, more architectural fixture than a conventional box sign. The right model depends on mounting method, panel background, number of faces, legend color, arrow direction, power, environmental rating and local approval—not appearance alone.
Edge-lit exit signs use a compact LED housing to illuminate an acrylic legend panel from its edge. In offices, hotels, restaurants, retail spaces, multifamily common areas and high-finish public interiors, the transparent or mirrored panel can reduce visual bulk while keeping the exit marking prominent. This guide explains how to compare recessed and surface-mounted models, clear and mirrored panels, single- and double-face signs, red and green legends, arrows, replacement panels and city-specific configurations.
Ready to compare products? Shop the Edge Lit Exit Signs collection.
What is an edge-lit exit sign?
A traditional internally illuminated exit sign places the legend on the face of a full thermoplastic, steel or aluminum enclosure. An edge-lit sign places the EXIT legend on an acrylic panel attached to a smaller LED housing. Light travels into the panel edge and makes the engraved or printed letters visible.
The design changes the appearance and installation details, but it does not remove the need to verify listing, visibility, emergency power, mounting and local code acceptance. Read the UL 924 guide for the relationship between product certification and adopted building or life-safety requirements.

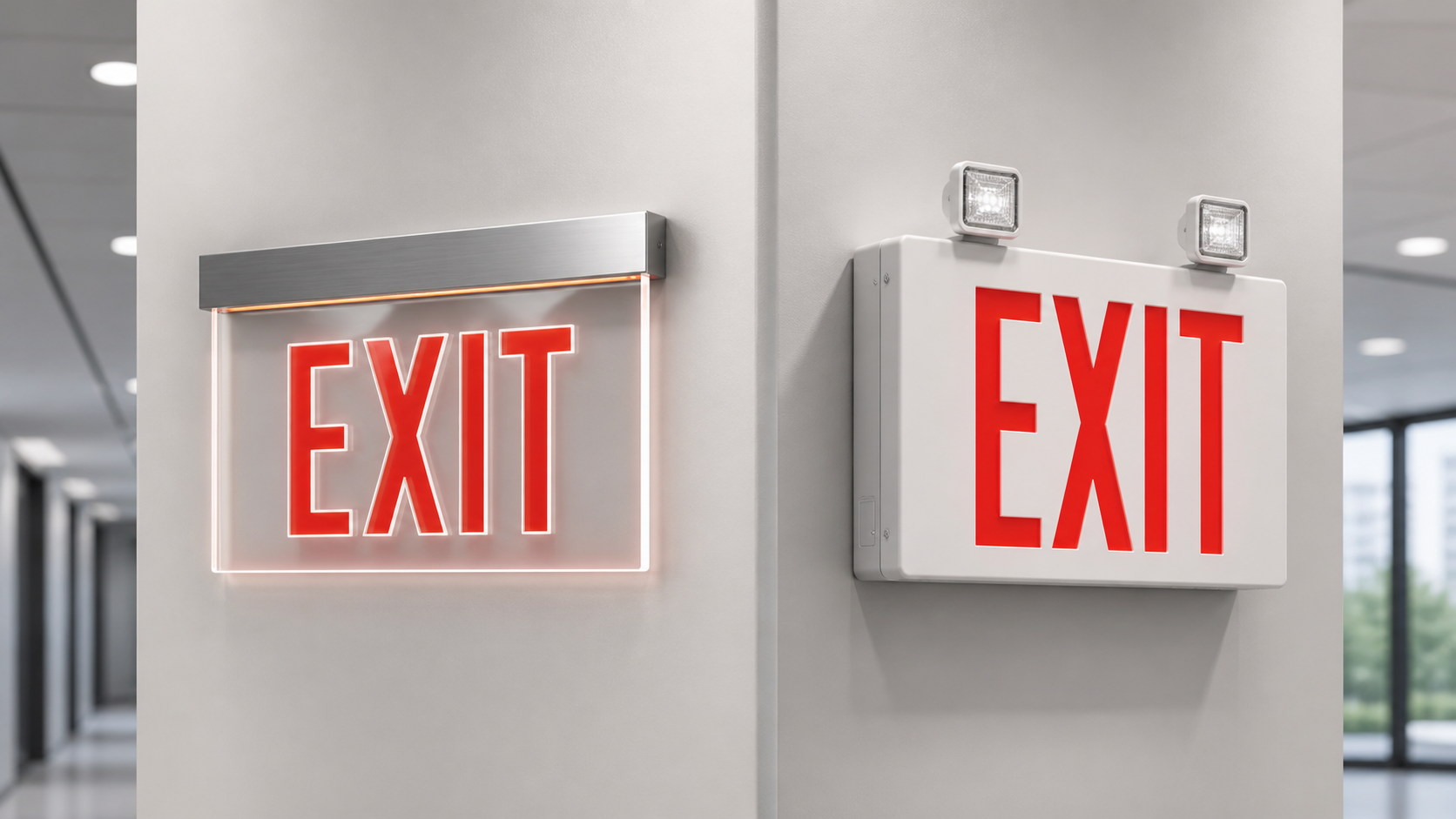

Edge-lit vs standard exit signs
| Factor | Edge-lit exit sign | Standard exit sign |
|---|---|---|
| Appearance | Slim acrylic panel with minimal visual mass | Conventional full housing around the legend |
| Best fit | Lobbies, hotels, offices, restaurants and finished interiors | Utility areas, back corridors, warehouses and budget-driven replacements |
| Mounting | Recessed, ceiling surface, wall or end mount depending on model | Often ceiling, wall or end mount with a visible housing |
| Panel choices | Clear, mirrored or white-background; single or double face | Faceplates or stencils integrated with the housing |
| Installation planning | Panel orientation, ceiling cavity and canopy details can be critical | Usually more forgiving for like-for-like retrofit work |
| Cost | Often higher for architectural or recessed construction | Broad range, including economical thermoplastic models |
Neither style is automatically more compliant. The correct choice is the product whose listing, configuration and installation match the project requirements.
Recessed vs surface-mounted edge-lit exit signs
Recessed edge-lit signs
A recessed model hides most of the electrical housing above the finished ceiling, leaving the illuminated panel and trim visible. This produces the cleanest architectural result but requires adequate ceiling depth, support, wiring access and coordination with other systems above the ceiling. Recessed fixtures are easiest to plan before the ceiling is closed.
Use the Recessed Edge-Lit Exit Signs collection when a low-profile ceiling installation is specified.
Surface-mounted edge-lit signs
Surface-mounted models attach the housing to the ceiling or wall. Many are better suited to retrofit work because the installer does not need to conceal the housing in a ceiling cavity. Some products also support end mounting from a side wall. Check the included canopy, mounting plate, knockout locations and permitted orientations.
Clear vs mirrored vs white-background panels
| Panel type | Visual effect | Selection note |
|---|---|---|
| Clear | Lowest visual mass; background remains visible | Evaluate contrast against the wall, glazing or objects behind the sign |
| Mirrored | Reflective, finished architectural appearance | Confirm whether the mirror construction is single-face or double-face |
| White background | Solid field behind the legend | Useful where a busy or dark background could reduce perceived contrast |
Product photography can make panel options look similar. Order by the written panel specification and face configuration, not the thumbnail alone.
Single-face vs double-face edge-lit signs
A single-face sign is read from one primary approach direction and is commonly installed flat against a wall or above a doorway at the end of a corridor. A double-face sign presents a readable legend to occupants approaching from opposite directions, making it useful for ceiling- or end-mounted positions at corridor intersections and open spaces.
Do not assume that two panels are required for every double-face product; construction varies. Confirm the manufacturer’s face designation and mounting limitations. See Single-Face vs Double-Face Exit Signs for additional layout guidance.
Red vs green legends
Edge-lit signs are commonly available with red or green EXIT legends. The correct color can be governed by the approved plans, local practice, owner standards or the need to match existing signage. Do not mix colors solely based on preference without confirming the project requirement. Our Red vs Green Exit Signs guide explains the decision in more detail.
Directional arrows and field configuration
Many edge-lit panels include field-selectable chevrons that an installer removes, inserts or configures to indicate the direction of egress travel. Arrow direction must match the actual route after installation. Check whether the panel supports left, right, both or no arrow, and follow the product instructions to avoid permanently damaging a legend panel.
For a double-face sign, verify the arrow orientation on both readable sides. What appears to be “left” from one approach can require a different panel configuration from the opposite approach.
Mounting position and viewing direction
Before ordering, mark the proposed sign location on the reflected ceiling plan or corridor layout and identify every direction from which occupants approach it. Then choose the face count, mounting orientation and arrow configuration. Keep the sign visible along the path of travel and avoid placing it where doors, décor, soffits or other building elements obstruct the legend.
- Wall mount: often works above a doorway when viewed head-on.
- Ceiling mount: useful in corridors and open spaces where the sign must hang below the ceiling plane.
- End mount: projects from a wall so the sign can be read along the corridor.
- Recessed ceiling mount: minimizes visible housing but needs coordinated ceiling space.
Power, battery backup and testing
Most commercial LED edge-lit signs are hardwired to a continuously available branch circuit and use an internal rechargeable battery to maintain the legend during a power interruption. Input voltage, wiring leads, battery connection sequence and initial charging time vary by product. Qualified personnel should follow the exact listed instructions and applicable electrical requirements.
After installation, commission the sign and test emergency operation. Continue with the installation and wiring guide and the monthly and annual testing checklist.
Indoor, damp, wet and hazardous locations
A standard architectural edge-lit sign should not be assumed suitable for moisture, washdown, corrosive conditions or classified hazardous areas. Verify the environmental rating and listing for the exact installed location. When moisture is possible, use the wet vs damp location guide. For classified spaces, use purpose-built equipment and consult the hazardous-location lighting guide.
NYC and Chicago edge-lit configurations
City-specific projects can require configurations different from a general commercial installation. ExitSignShop carries dedicated NYC Edge-Lit Exit Signs and Chicago-labeled edge-lit products. Match the exact sign to the approved drawings and verify current local acceptance with the authority having jurisdiction; a city name in a product title is not a substitute for project review.
Replacement panels and maintenance
An acrylic panel can be scratched, cracked or incorrectly configured even when the LED housing remains functional. Before ordering a replacement panel, record the manufacturer, model, legend color, background style, face count, arrow arrangement, dimensions and attachment method. Panels are not universally interchangeable.
Clean acrylic with a method approved by the manufacturer; harsh solvents or abrasives can cloud or damage the surface. Inspect the housing, panel attachment, legend visibility, charging indicator and emergency operation during routine testing.
Edge-lit exit sign selection worksheet
- Location: interior, damp, wet or hazardous?
- Mounting: recessed ceiling, surface ceiling, wall or end mount?
- Approach: one viewing direction or two?
- Panel: clear, mirrored or white background?
- Legend: red or green, and what letter/format requirements apply?
- Direction: no arrow, left, right or two-way?
- Electrical: branch voltage, hardwired input and battery-backed operation?
- Approval: general commercial, NYC, Chicago or another local requirement?
- Installation: enough ceiling space, wiring access and correct mounting hardware?
- Documentation: product listing, instructions and approved plans all aligned?
Common ordering mistakes
- Choosing a recessed model after the ceiling is closed without confirming cavity access.
- Ordering single face where the sign must be read from two directions.
- Selecting a clear panel without checking contrast against its background.
- Assuming arrows are universally removable or reversible.
- Buying by product image instead of the written legend, panel and mounting specifications.
- Using an indoor architectural model in a wet or hazardous location.
- Assuming one replacement panel fits another manufacturer’s housing.
Frequently asked questions
Are edge-lit exit signs code compliant?
Edge-lit construction can be used in compliant installations, but compliance depends on the specific listed product, legend, visibility, emergency power, mounting and locally adopted requirements. Verify the exact model and installation with the project documents and AHJ.
Are recessed edge-lit signs harder to install?
They require more coordination because the housing sits above the finished ceiling. Confirm cavity depth, support, wiring access and service access before choosing recessed construction.
Can one edge-lit exit sign be both single and double face?
Some product families offer configurable face options, but not every model converts in the field. Order the documented face configuration needed for the viewing directions.
Can I replace only the acrylic panel?
Sometimes, if the correct manufacturer-specific panel is available and the housing remains serviceable. Match the model, dimensions, legend, background, face count, arrows and attachment method exactly.
Which edge-lit sign should I buy?
Start with the mounting condition and viewing directions, then match panel style, legend color, arrows, voltage, battery operation and location rating. Shop the Edge Lit Exit Signs collection and compare each written specification.
Bottom line
Edge-lit exit signs are the strongest choice when life-safety visibility must coexist with a clean architectural interior. Recessed models offer the lowest profile; surface-mounted models often simplify retrofit work. The buying decision ultimately comes down to mounting, panel, faces, legend, arrows, power, environment and local approval. Compare the live edge-lit collection, or continue through the Exit Sign & Emergency Lighting Learning Center.
