Commercial emergency lighting keeps an occupied building’s path of egress visible when normal power fails. Choosing the right equipment takes more than selecting a familiar two-head fixture: the design must account for the building layout, required illumination, mounting height, environmental exposure, emergency-power strategy, inspection program, and the codes adopted by the local authority having jurisdiction (AHJ).
This guide explains the main types of commercial emergency lights, how battery backup systems work, which specifications matter, and how to narrow a fixture list before final photometric and code review.
What is commercial emergency lighting?
Commercial emergency lighting is the equipment that automatically supplies illumination when normal lighting power is interrupted. Its purpose is to help occupants identify and travel along the means of egress, including corridors, changes in direction, stairs, ramps, exit access doors, and the area immediately outside an exit where required.
Emergency lights and exit signs perform related but different jobs. An exit sign identifies an exit or the direction of egress; emergency lighting illuminates the travel path. A building commonly needs both. A combined exit sign and emergency-light unit can serve both functions where its location and light distribution suit the layout.
Common types of commercial emergency lights

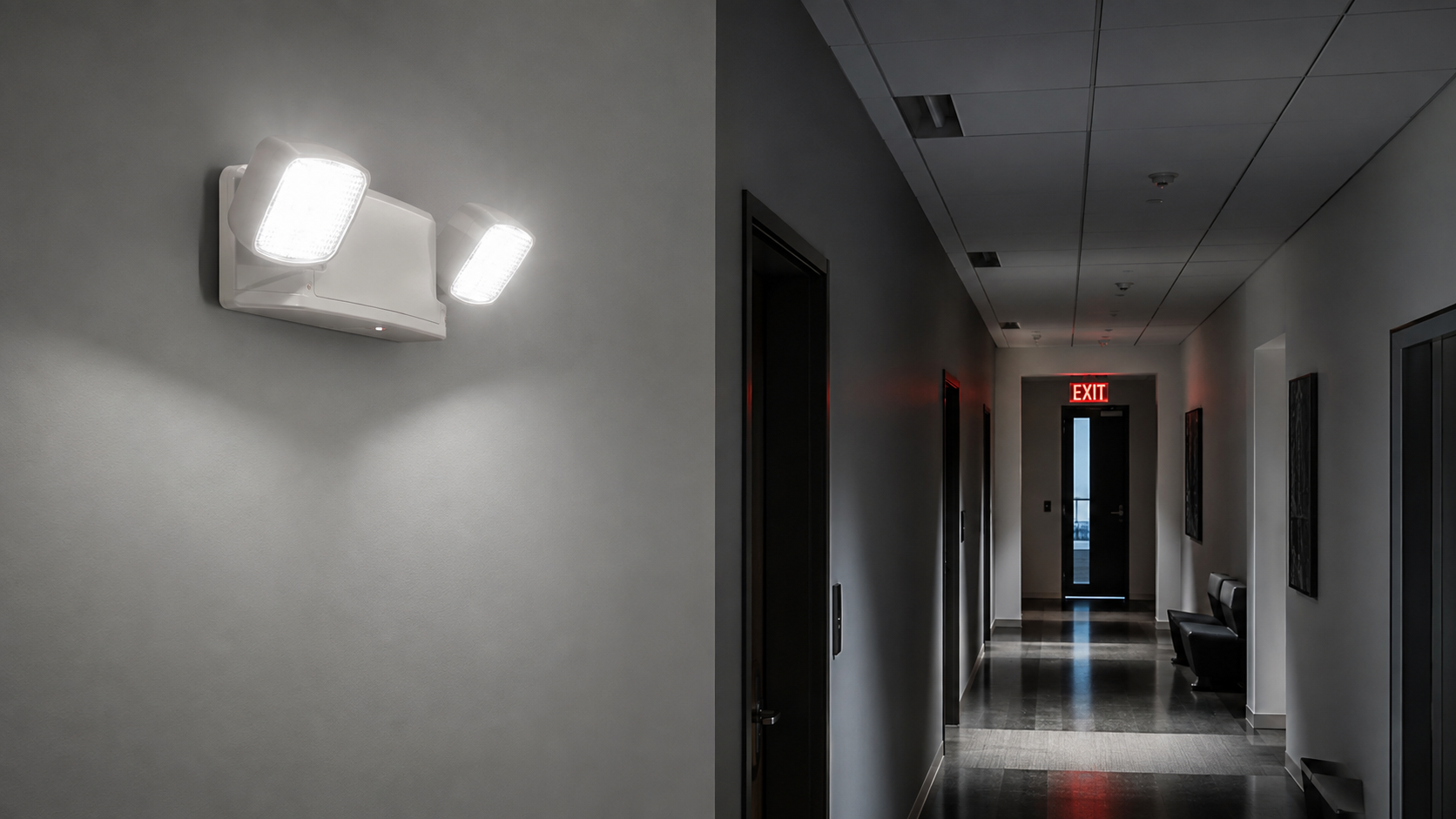

Standard two-head emergency lights
These self-contained wall- or ceiling-mounted units are common in offices, retail spaces, schools, apartment common areas, and utility rooms. Adjustable LED heads allow the installer to aim light toward the egress path. They are economical and easy to service, but spacing still depends on the unit’s photometric performance and the room geometry.
Architectural and recessed emergency lights
Architectural units reduce the visual impact of life-safety equipment in lobbies, hospitality spaces, galleries, and finished interiors. Recessed models can conceal the housing or lamp assemblies during normal operation. Confirm wall or ceiling cavity depth, access for battery service, trim dimensions, fire-rated assembly requirements, and how the heads deploy or illuminate during an outage.
High-output emergency lights
Warehouses, industrial spaces, large open rooms, and high mounting locations may require more output than a compact standard unit can deliver. Compare emergency lumens, beam distribution, mounting height, and spacing data. A high wattage label alone does not show how effectively light reaches the floor.
Remote-capable units and remote heads
A remote-capable battery unit can power one or more compatible lamp heads installed away from the main equipment. This can simplify maintenance by centralizing the battery while placing light where it is needed, such as over an exterior door or around a corridor turn. The connected head voltage, wattage, total load, wire size, distance, polarity, and environmental rating must all fall within the manufacturer’s limits. See our remote-capable emergency-light guide for a deeper compatibility discussion.
Wet-location, outdoor, and cold-weather units
Damp and wet locations require equipment listed for the actual exposure. A unit under a canopy is not automatically protected from wind-driven rain or condensation. Outdoor designs may include sealed enclosures, gaskets, corrosion-resistant hardware, thermostatically controlled heaters, or cold-rated batteries. Check the listed ambient temperature range as well as the wet-location designation.
Hazardous-location emergency lights
Areas containing flammable gases, vapors, combustible dusts, or ignitable fibers require equipment suitable for the specific classification. Match the fixture to the Class, Division or Zone, material Group, and temperature code documented for the location. An ordinary weatherproof fixture is not a substitute for listed hazardous-location equipment. Use our hazardous-location lighting guide to understand the terminology.
Exit sign and emergency-light combo units
A combo unit integrates an illuminated exit sign and adjustable emergency heads in one enclosure. It can reduce wiring, installation time, and wall clutter when the exit sign position is also a useful lighting position. Separate fixtures provide more flexibility when the sign must be visible from one point but the floor area needs illumination from several other points. Compare the options in our exit sign and emergency-light combo buyer’s guide.
How battery backup works
A typical self-contained unit contains a charger, rechargeable battery, transfer circuitry, test control, charge indicator, and LED lamp heads. With normal power present, the charger maintains the battery. When the branch circuit fails, the transfer circuitry energizes the emergency lamps from the battery. When power returns, the unit resumes charging.
Do not judge compatibility by physical size or battery voltage alone. The charger is designed around a particular battery chemistry, voltage, and capacity range. Substituting an undocumented battery can cause poor runtime, chronic undercharging, excessive heat, or premature failure.
Battery specifications to confirm
- Chemistry: commonly nickel-cadmium, nickel-metal hydride, sealed lead-acid, or another manufacturer-specified chemistry.
- Nominal voltage and capacity: both must match the fixture or approved replacement specification.
- Required emergency duration: verify the listing and project requirement; many North American applications are designed around a 90-minute emergency period.
- Recharge time: allow the full manufacturer-specified charging period before a duration test.
- Ambient temperature: cold and heat affect available capacity, charging, and service life.
- Replacement access: confirm that the battery and connectors can be serviced without damaging the enclosure.
Emergency illumination and photometric design
Compliance is based on illumination delivered along the path of egress, not on a fixed number of fixtures per square foot. Fixture output is only one part of the calculation. Mounting height, beam spread, corridor width, wall reflectance, obstructions, lamp aiming, voltage drop, and the location of doors or stairs all affect the result.
For a simple corridor, manufacturer spacing data may provide a useful preliminary layout. Larger, taller, irregular, or high-risk spaces should be evaluated with manufacturer photometric files and approved lighting calculations. The emergency mode output—not the fixture’s normal-light output—must be used.
Commercial emergency-light selection table
| Application | Typical starting point | Critical checks |
|---|---|---|
| Office or retail corridor | Standard LED two-head unit | Spacing, head aiming, mounting height, self-test preference |
| Lobby or finished interior | Architectural or recessed unit | Recess depth, finish, service access, photometrics |
| Warehouse or high ceiling | High-output unit | Emergency lumens, beam spread, coverage at floor level |
| Exterior exit door | Wet-location or cold-weather unit | Direct weather, temperature range, corrosion resistance |
| Long corridor or multiple remote points | Remote-capable unit with compatible heads | Total load, voltage, distance, wire size, head rating |
| Classified industrial area | Hazardous-location emergency light | Class/Division/Group or Zone, T-code, listing |
| Exit requiring both sign and light | Exit/emergency combo unit | Sign visibility, head coverage, face count, letter color |
Input voltage and emergency-power arrangements
Many self-contained units accept common dual-voltage inputs, but the exact range and wiring method must be verified. Connect life-safety equipment to the designated unswitched normal-lighting circuit as required by the project design so the equipment can sense a local lighting-circuit failure. A permanently energized circuit is not necessarily the same as the correct monitored circuit.
Buildings with generators, inverters, central battery systems, or emergency lighting control devices may use a different architecture. Confirm how transfer, branch-circuit monitoring, bypass, and controls work before mixing self-contained battery fixtures with centralized emergency power.
Environmental and construction ratings
Start by classifying every installation point as dry, damp, wet, outdoor, cold, corrosive, vandal-prone, washdown, or hazardous. Then review the complete product listing and specification sheet.
- Thermoplastic: lightweight and economical for many standard interiors.
- Steel: durable and often selected for commercial or institutional spaces.
- Die-cast aluminum: rigid, corrosion resistant, and suitable for higher-finish applications when properly rated.
- Sealed fiberglass or polymer enclosures: useful for wet, corrosive, or demanding industrial environments when listed for the application.
NEMA and IP enclosure ratings describe specific forms of ingress protection; they do not by themselves establish suitability for hazardous locations, emergency-lighting use, cold temperatures, or every outdoor condition.
Self-testing and diagnostics
Self-testing equipment can initiate scheduled battery and lamp checks and display detected faults. This is valuable in large facilities, but it does not remove the need for visual inspection, documentation, cleaning, head realignment, or corrective action. Maintenance personnel should keep the indicator-code legend and know how to distinguish a battery, lamp, charger, and wiring fault.
Installation planning checklist
- Confirm the adopted building, fire, electrical, and life-safety requirements with the AHJ.
- Mark the complete path of egress, including stairs, changes in direction, doors, and discharge areas.
- Identify normal circuit voltage and the intended emergency-power arrangement.
- Classify each location for moisture, temperature, corrosion, impact, and hazardous materials.
- Select mounting height and method, then confirm wall or ceiling structure and service access.
- Use emergency-mode photometric data to check spacing and floor-level illumination.
- Verify remote-head load and wiring limitations where applicable.
- Coordinate exit signs, emergency lights, sprinklers, detectors, cameras, and architectural elements.
- Provide permanent identification and accessible test controls.
- Allow the specified initial charge time before the acceptance-duration test.
Inspection, testing, and maintenance
Emergency equipment should be visually inspected and functionally tested at the intervals required by the adopted code, the AHJ, and the manufacturer. A good record identifies the fixture, location, date, person performing the test, test duration, result, and corrective action. Read our monthly and annual emergency-lighting testing checklist for a practical procedure.
Common maintenance problems include discharged or aged batteries, blocked or mis-aimed heads, dirty lenses, loose connectors, failed chargers, incorrect replacement lamps, and units connected to switched circuits. Address the cause rather than repeatedly resetting a fault.
Frequently asked questions
How many emergency lights does a commercial building need?
There is no universal fixture count. The number depends on the egress layout, emergency photometrics, mounting height, obstructions, and the requirements enforced by the AHJ. Use an approved layout rather than a rule of thumb.
Do all emergency lights need battery backup?
Emergency illumination needs an approved source of emergency power, but that source can be self-contained batteries, a generator, an inverter, a central battery system, or another permitted arrangement. The correct choice depends on the building design and adopted code.
Can an outdoor emergency light use a standard indoor battery?
Only if the complete listed product is approved for the actual environment and temperature range. Do not modify a standard indoor unit or substitute a battery that the manufacturer has not approved.
Are self-testing emergency lights maintenance-free?
No. Automatic diagnostics reduce manual activation work, but staff must still inspect the equipment, document results, interpret faults, and repair failed components.
Choosing the right fixture
Begin with the application—not the appearance of the fixture. Define the egress area, environment, mounting, electrical system, required emergency duration, testing preference, and photometric need. Then compare listed products using their complete specification sheets.
Browse our commercial emergency lights and contact Exit Sign Shop with the floor plan, ceiling height, environment, input voltage, and any project specifications that affect selection. Final compliance decisions remain with the project professional and local AHJ.
