Emergency ballasts and LED emergency drivers keep selected fluorescent or LED luminaires operating when normal power fails. Although both products provide emergency illumination, they are not interchangeable. The correct unit must match the light source, normal ballast or driver, electrical load, wiring method, required emergency output, runtime, temperature, enclosure, and listing.
This guide explains how the two technologies work, which nameplate details to collect, how to evaluate compatibility, and when component replacement is less practical than replacing the complete fixture.
What is an emergency ballast?
An emergency ballast is a battery-backed device designed to operate one or more compatible fluorescent lamps at reduced output during a power failure. During normal operation, the fixture’s regular ballast powers the lamps while the emergency ballast charges its battery and monitors normal power. When normal power is lost, the emergency ballast transfers the designated lamp or lamps to battery operation.
Compatibility is specific. Lamp family, lamp wattage, lamp quantity, base type, normal ballast arrangement, starting method, wiring diagram, and ambient conditions can all matter. A fluorescent emergency ballast should not be selected only by case dimensions or battery voltage.
What is an LED emergency driver?
An LED emergency driver supplies battery power to a compatible LED load during an outage. Depending on the design, it may connect to an LED array, work with a normal LED driver, or be integrated into a listed luminaire. LED systems require careful electrical matching because LED modules and drivers can use different output voltage ranges, currents, wattages, dimming methods, and isolation topologies.
The emergency driver’s published output must fall within the compatible range for the connected LED load. The resulting emergency lumens depend on driver power, LED efficacy, fixture optics, temperature, and conversion losses; the emergency watt rating should not be treated as a direct lumen value.
Emergency ballast vs. LED emergency driver
| Characteristic | Fluorescent emergency ballast | LED emergency driver |
|---|---|---|
| Light source | Specified fluorescent lamp families and quantities | Compatible LED modules, luminaires, or normal drivers |
| Primary matching data | Lamp type, wattage, quantity, base, normal ballast | LED load range, output voltage/current, wattage, topology |
| Emergency output | Reduced lamp lumen output listed for supported lamps | Emergency watts or lumens based on the compatible LED load |
| Wiring | Manufacturer diagram for lamp and ballast arrangement | Manufacturer diagram for normal driver and LED connections |
| Best replacement path | Exact model or documented compatible ballast | Exact model or a manufacturer-approved driver/load combination |
| Typical upgrade question | Whether obsolete fluorescent equipment should be retained | Whether the existing LED module and normal driver remain serviceable |
How an emergency lighting conversion system works

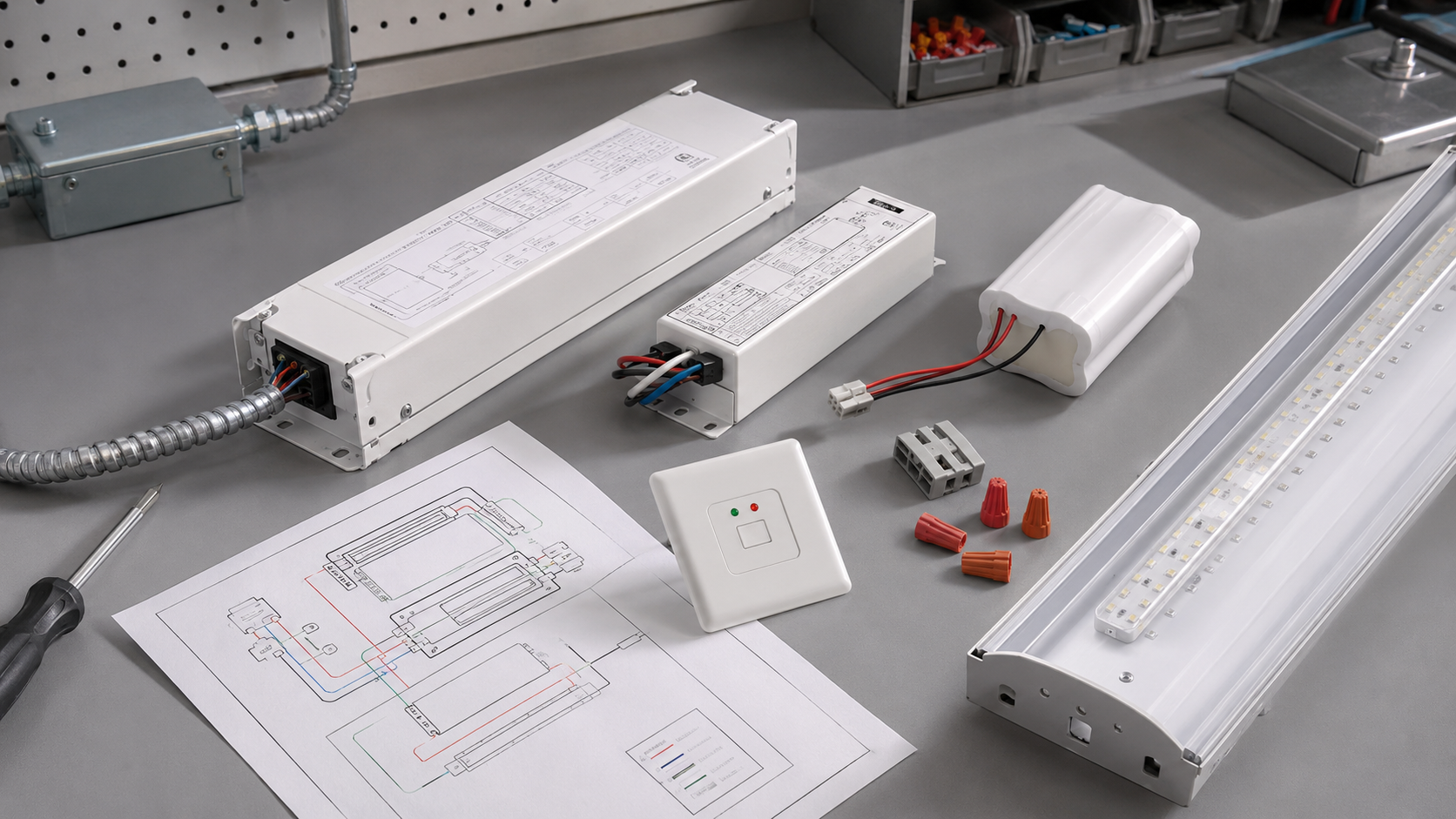

A typical system includes a rechargeable battery, charger, transfer or control circuit, test switch, and charge-status indicator. Normal power keeps the battery charged. When the monitored circuit loses power, the emergency device energizes the designated lamp or LED load. When normal power returns, the unit leaves emergency mode and begins recharging.
The fixture may still operate normally even when the emergency section has failed. That is why a glowing lamp during normal power does not confirm emergency readiness. Functional and duration testing are necessary.
Information to collect before ordering
Photograph and record the complete equipment labels before disconnecting anything. The following information helps prevent incompatible substitutions:
- Fixture manufacturer, model, and date code
- Emergency ballast or driver manufacturer and exact model
- Normal ballast or LED driver model and electrical ratings
- Fluorescent lamp family, wattage, base, and quantity
- LED module model, forward-voltage range, current, and rated wattage
- Input voltage and frequency
- Emergency output voltage, current, power, or published lumens
- Minimum and maximum connected load
- Required emergency duration and recharge time
- Ambient temperature and plenum or enclosure requirements
- Test switch, indicator, connector, and remote-test configuration
- Fixture listing and manufacturer documentation
- Clear photographs of the original wiring diagram and every connection
How to read the key specifications
Input voltage
The emergency device must be suitable for the building supply and wired to the correct unswitched source. Some models accept a wide input range; others are voltage-specific. Never infer voltage from wire color alone.
Emergency output
For fluorescent systems, documentation may list expected emergency lumens for specific lamp combinations. LED devices may state constant emergency power, output current, a voltage range, or tested lumen performance with particular luminaires. Use the data applicable to the actual load.
Connected load range
An LED emergency driver may require the LED load to fall between minimum and maximum limits. A load outside this window may not start, may operate unstably, or may not deliver the expected duration. Fluorescent ballasts likewise support defined lamp types and quantities.
Runtime and recharge
Many North American emergency-lighting systems are designed to provide at least 90 minutes of illumination, but the adopted code and project documents govern. The product must be charged for the manufacturer-specified period before a full duration test. Repeated tests without adequate recharge can create misleading failures and shorten battery life.
Ambient temperature
Battery capacity and charging performance change with temperature. A component installed in a hot plenum, cold vestibule, freezer area, or sealed enclosure must be listed for those conditions. Verify both the emergency component rating and the complete luminaire rating.
Test switch and charge indicator
The test control simulates loss of normal power to the emergency section. The charge indicator shows that charging power or a monitored condition is present, but it does not prove that the battery can carry the load for the required duration. Use only the switch and indicator configuration specified by the manufacturer.
Compatibility decision table
| Question | If yes | If no or unknown |
|---|---|---|
| Is the exact original model still available? | Confirm current documentation and order the approved replacement. | Continue with a documented cross-reference; do not substitute by appearance. |
| Does the manufacturer list the lamp or LED load? | Verify quantity, wattage, output, and wiring configuration. | Request written compatibility confirmation or replace the fixture. |
| Do input and emergency output ratings match? | Check remaining environmental and listing requirements. | Stop; the device is not a valid direct substitute. |
| Is the original wiring diagram available? | Label conductors and follow it exactly. | Obtain documentation before disconnecting the existing equipment. |
| Is the complete luminaire still in good condition? | Component replacement may be economical. | Evaluate full fixture replacement. |
Fluorescent-to-LED conversions: an important caution
Replacing fluorescent lamps with LED retrofit tubes can change the emergency-lighting system. Some LED tubes bypass the normal ballast, some depend on it, and others use a separate driver. An existing fluorescent emergency ballast is not automatically compatible with an LED replacement lamp, even if the LED tube fits the same sockets.
Before converting, confirm that the lamp, normal ballast or driver, emergency device, sockets, wiring method, and luminaire listing form an approved system. If documentation is unavailable, a new listed LED fixture with integrated emergency capability may be safer and easier to maintain.
Replacement procedure overview
Emergency ballast and driver replacement involves line voltage, stored battery energy, and life-safety equipment. A qualified electrician should complete the work in accordance with the manufacturer’s instructions and applicable requirements.
- Identify and lock out all normal and emergency power sources.
- Confirm absence of voltage using appropriate test equipment.
- Photograph the labels and wiring before moving conductors.
- Disconnect the battery using the manufacturer’s specified sequence.
- Label each conductor and remove the failed component without damaging the fixture.
- Mount the approved replacement with required clearances and strain relief.
- Wire the exact supported diagram; do not rely on a generic color-to-color substitution.
- Install the specified test switch and charge indicator where visible and accessible.
- Reconnect the battery and restore power.
- Verify the charge indicator and normal fixture operation.
- Allow the full initial charge period.
- Perform a short functional test followed by the required duration test.
- Record the replacement model, date, test result, and next inspection date.
Common failure symptoms and likely causes
| Symptom | Possible causes | Next check |
|---|---|---|
| Charge indicator is off | No unswitched power, loose connection, failed charger, failed indicator | Verify supply and manufacturer diagnostic procedure |
| No emergency illumination | Disconnected battery, failed battery, wiring fault, incompatible lamp/load, failed control circuit | Inspect connections and test battery under the approved procedure |
| Very short runtime | Aged battery, insufficient charge, excessive load, cold temperature, charger fault | Recharge fully and conduct a documented duration test |
| Dim or flickering output | Incorrect load, failing lamp/module, driver mismatch, loose connection | Compare load and wiring against the exact compatibility table |
| Swollen, hot, leaking, or corroded battery | Battery failure, charger problem, excessive heat, wrong replacement | De-energize safely and replace only after identifying the cause |
| Automatic diagnostic fault | Battery, lamp, load, charger, wiring, or test-circuit issue | Use the model-specific fault-code guide |
Battery-only replacement versus complete unit replacement
If testing identifies only an aged battery and the exact approved battery is available, a battery replacement may restore the unit economically. Read our exit sign and emergency-light battery replacement guide before selecting by voltage, capacity, chemistry, and connector.
Replace the complete emergency ballast or driver when the charger, control electronics, enclosure, or wiring is damaged. Consider replacing the entire luminaire when the original component is obsolete, the normal ballast or LED driver is failing, the LED module is degraded, labels are illegible, the enclosure is damaged, or labor to engineer a substitute exceeds the cost of a new listed fixture.
Testing after replacement
A quick push-button check confirms transfer and lamp operation, but it does not establish full battery capacity. After the specified charge time, conduct the required duration test and observe the light output throughout the test. Confirm that normal operation and charging resume afterward.
Record the fixture location, replacement component, battery date code, initial charge time, test duration, pass/fail result, and corrective action. Follow our emergency-lighting testing guide when building the facility record.
Frequently asked questions
Can I replace an emergency ballast with any model using the same battery voltage?
No. Battery voltage is only one specification. Lamp compatibility, wiring, output, charger design, runtime, temperature, and listing must also be verified.
Can an LED emergency driver power any LED fixture?
No. The LED load must fall within the driver’s documented electrical and application limits. Obtain manufacturer confirmation when the fixture or module is not listed in the compatibility data.
Why does the fixture work normally but fail in emergency mode?
The normal ballast or driver and the emergency section use different circuitry. A failed battery, charger, transfer circuit, test switch, or emergency connection can remain hidden until power is interrupted or the unit is tested.
Should an old fluorescent fixture be converted or replaced?
Compare the availability of approved parts, the condition of the fixture, labor, energy use, required emergency output, and documentation. A new listed LED emergency fixture is often the clearer long-term solution when the original system is obsolete or poorly documented.
Before you buy
Start with the exact fixture, lamp or LED module, normal driver or ballast, emergency-device model, supply voltage, environment, and wiring diagram. If any of those details are missing, pause before ordering a “universal” replacement.
