10W LED Explosion-Proof Emergency Light – Class I Div 1 – 5000K

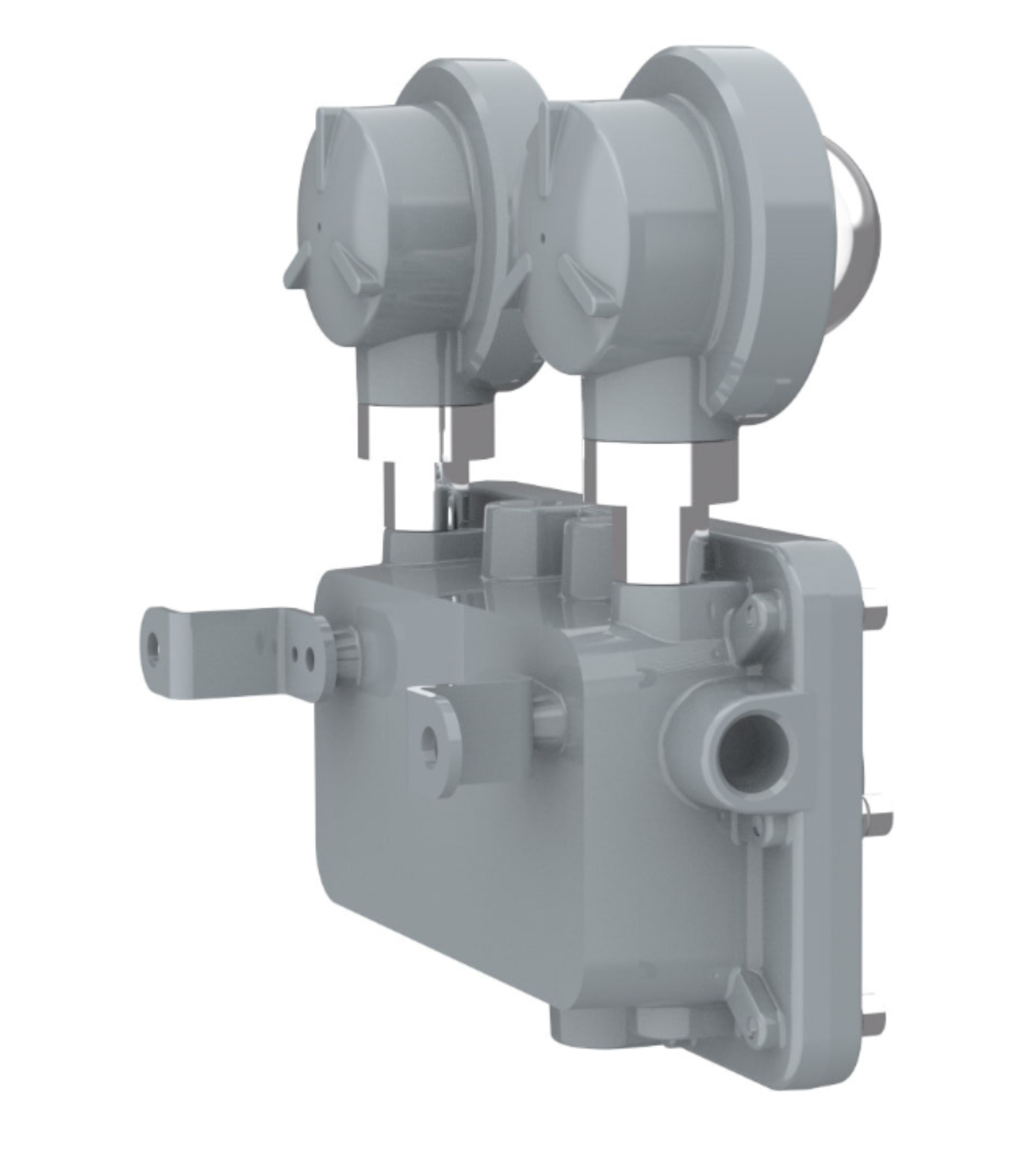

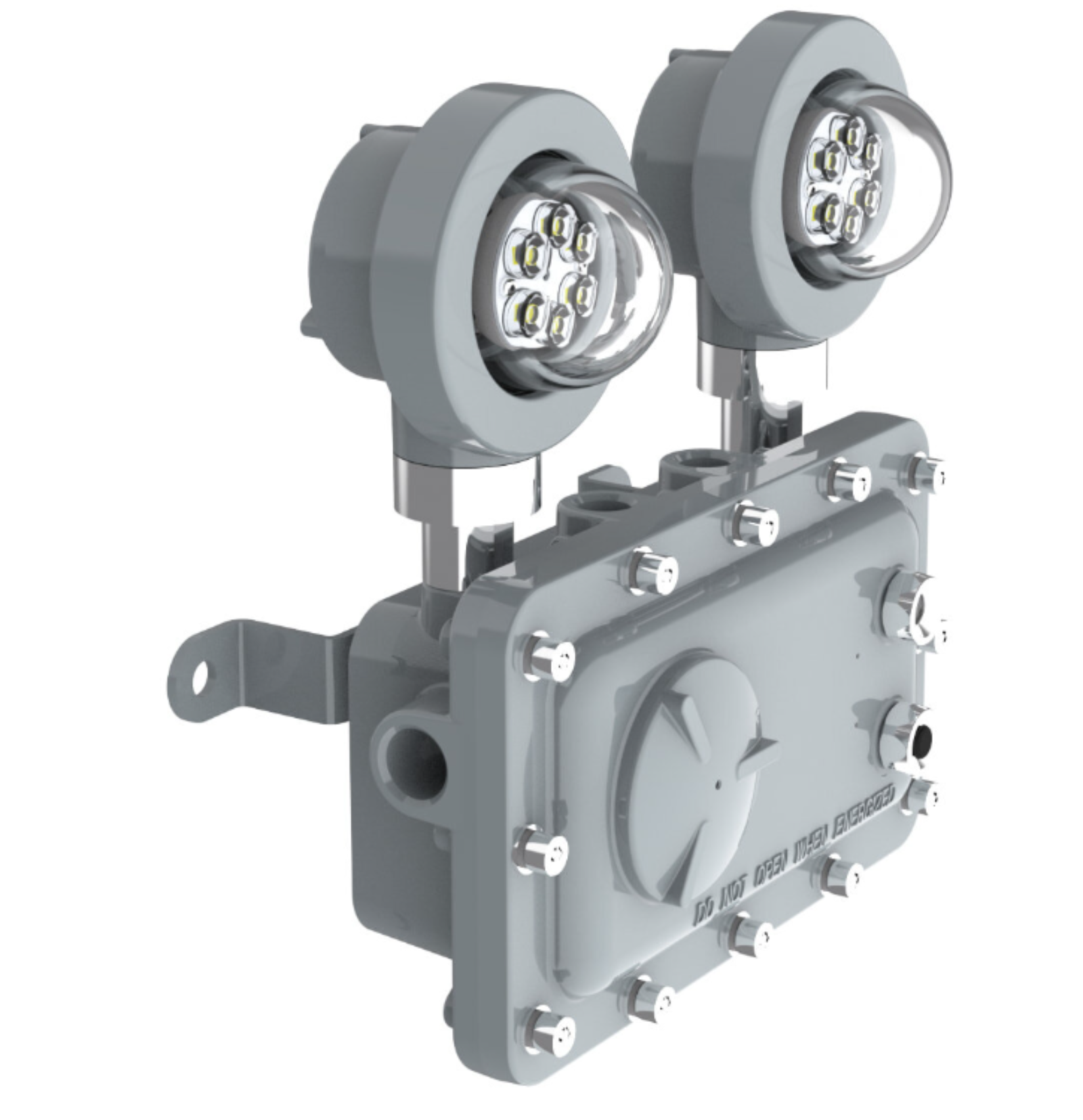

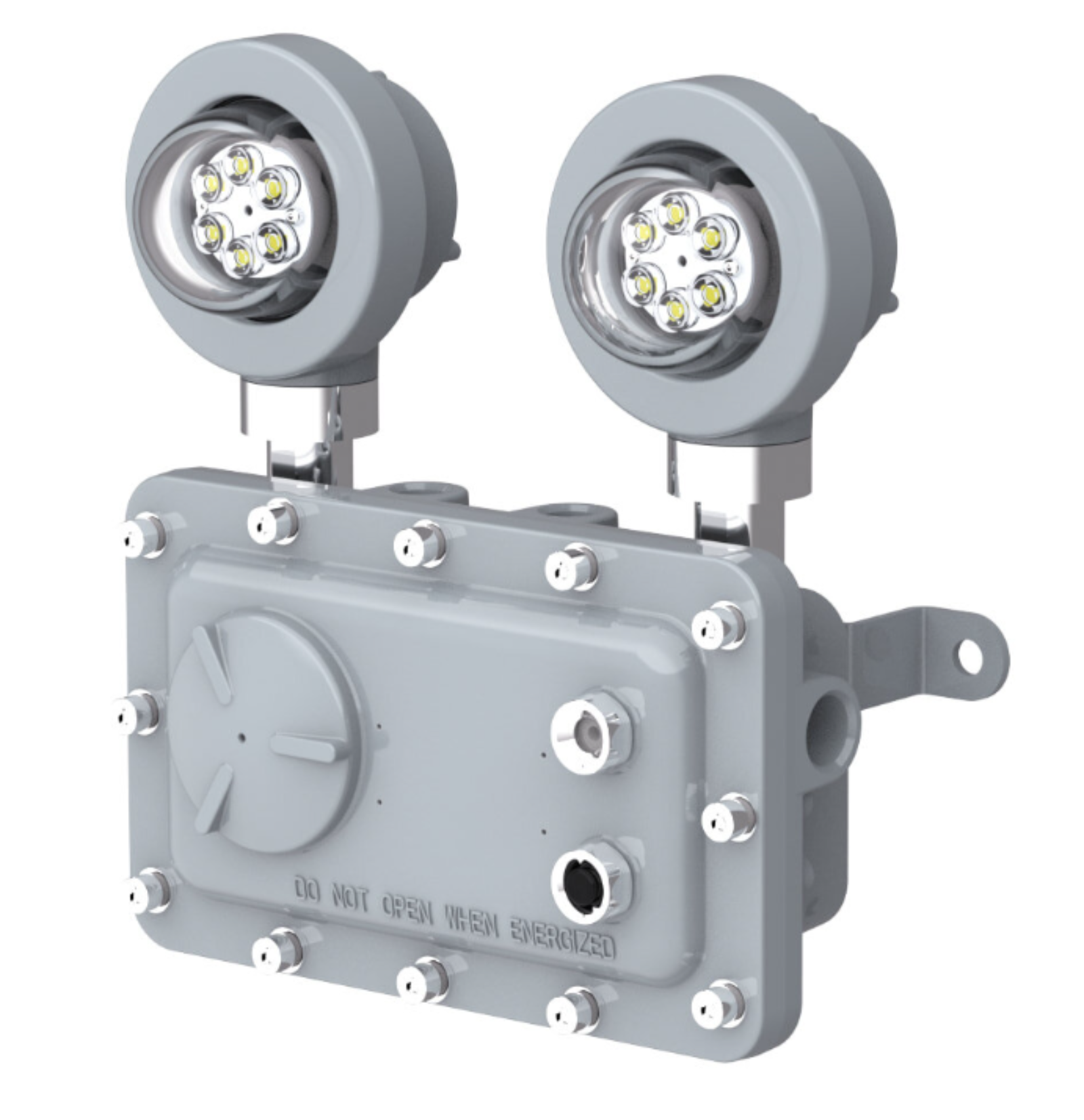

The 10W LED explosion-proof emergency light provides three hours of battery-backed illumination for classified industrial and marine locations. Dual adjustable LED heads deliver up to 900 lumens at 5000K, while the rugged A360 die-cast aluminum enclosure is rated IP66, NEMA 4X and IK10.

Key features

• 10W LED emergency light with up to 900-lumen output
• Universal 120–277V AC input
• Three-hour emergency operation
• Two adjustable spot heads with 0°–180° aiming
• 90° or 120° beam-angle configurations
• PHENIX emergency driver
• A360 die-cast aluminum housing with stainless-steel hardware
• Tempered-glass components
• Three 3/4-inch NPT conduit hubs
• Operating temperature: -40°F to 149°F
• Rated life up to 50,000 hours
• Five-year limited manufacturer warranty

Hazardous-location classifications

• Class I, Division 1, Groups C and D
• Class I, Division 2, Groups A, B, C and D
• Class II, Division 1, Groups E, F and G
• Class II, Division 2, Groups F and G
• Class III

Listings and environmental ratings

• ETL Listed
• UL 844 hazardous locations
• UL 924 emergency lighting
• UL 1598 wet locations
• UL 1598A marine outside type
• UL 8750 LED equipment
• IP66, NEMA 4X and IK10

Applications

Designed for emergency egress illumination in appropriately classified oil and gas facilities, chemical plants, refineries, marine facilities and other demanding environments. Confirm the exact area classification and installation requirements with the authority having jurisdiction before ordering.

Dimensions and shipping

• Package size: 22 × 22 × 8 inches
• Shipping weight: 24 lb
