UL 924 is the principal product-safety standard used in the United States for emergency lighting and power equipment. It applies to equipment intended to illuminate or identify the path of egress when normal power is interrupted, including many exit signs, emergency-light units, combination fixtures, emergency ballasts and LED emergency drivers.
This guide explains what UL 924 certification means, what it does not mean, and how it fits with OSHA rules, NFPA 101, the International Building Code (IBC), the National Electrical Code (NEC), and local enforcement. It is written for contractors, facility managers, property owners, and purchasing teams selecting commercial life-safety equipment.
Important: UL 924 is a product standard, not a complete building-code design guide. A listed product can still be installed incorrectly or used in the wrong application. Always verify the adopted code edition, approved plans, manufacturer instructions, and requirements of the local authority having jurisdiction (AHJ).
What is UL 924?
UL 924, Emergency Lighting and Power Equipment, establishes safety and performance criteria for equipment used in emergency egress systems. UL Solutions describes the standard as part of the certification framework connecting emergency-lighting products with model-code requirements such as NFPA 101, the NEC, and the International Codes.
Depending on the product category and construction, evaluation may address electrical safety, normal-to-emergency operation, charging and battery systems, light output, duration, markings, controls, abnormal conditions, and other performance characteristics. The exact tests are product-specific; an exit sign, unit emergency light, inverter, and emergency LED driver are not evaluated as though they were identical devices.
Which products fall under UL 924?
| Equipment type | Emergency function | What buyers should verify |
|---|---|---|
| Exit signs | Identify exits and directional egress routes | Listing mark, legend color, face count, arrows, visibility, backup method, location rating |
| Unit emergency lights | Illuminate the egress path after normal power loss | Listed output, operating duration, aiming, environment, voltage, self-test features |
| Combination units | Combine exit identification with emergency illumination | Head output, remote-head capacity, face configuration, mounting, damp/wet rating |
| Emergency ballasts and LED drivers | Operate selected lamps or LED loads during an outage | Lamp/load compatibility, emergency lumens, wiring, test accessory, battery, temperature limits |
| Inverters and centralized equipment | Supply emergency power to connected lighting loads | Capacity, load types, transfer behavior, runtime, branch-circuit design, monitoring |
| Photoluminescent or self-luminous signs | Provide non-electrical exit identification | Applicable listing, viewing distance, charging conditions or service life, installation limitations |
UL Listed versus “UL compliant”
These phrases are not interchangeable. A product represented as UL Listed should carry the applicable UL certification mark and be identifiable in UL’s certification records. “Designed to meet UL 924,” “UL 924 compliant,” or similar marketing language does not by itself prove that the complete product has been independently certified.
Before specifying or purchasing equipment:
- Inspect the product label or specification sheet for the certification mark.
- Confirm that the mark applies to the complete fixture or equipment—not merely one internal component.
- Check the model number, environmental rating, input voltage, and intended application.
- Use UL Product iQ or the manufacturer’s certification documentation when formal verification is required.
- Retain submittals and listing information with the project records.
Does UL 924 require 90 minutes of emergency operation?
The familiar 90-minute duration comes from the broader life-safety and building-code framework for emergency egress illumination. UL 924 provides the product evaluation used to demonstrate that covered equipment can perform its intended emergency function, while adopted codes determine where emergency lighting is required and the performance that the installed system must deliver.
For battery-backed unit equipment, the practical result is that the battery, charger, lamps or LEDs, control circuit, and enclosure must work as a system. The fixture must not merely turn on during a brief test; it must support the specified emergency performance for the applicable duration under its rated conditions.
Use the listed emergency output—not normal-mode wattage or an unverified lumen claim—when evaluating a layout. For an overview of required testing after installation, see our monthly and annual emergency-lighting testing checklist.
Normal power, transfer, and battery charging
Emergency equipment is normally connected to an unswitched source so it can detect loss of normal power and keep its battery charged. When normal power fails, unit equipment automatically transfers to its emergency source. When normal power returns, the unit resumes charging and returns to its normal state.
That sequence is why several installation details matter:
- Unswitched supply: Connecting life-safety equipment only to a wall switch can prevent charging or create a false outage condition.
- Correct input lead: Many commercial fixtures accept 120/277V, but the installer must use the correct conductor and cap unused leads as instructed.
- Battery connection: Some equipment ships with the battery disconnected and must be connected during commissioning.
- Initial charge: The manufacturer’s required charging period should be completed before a full-duration test.
- Ambient limits: Battery capacity and electronics can be affected by temperature. Use equipment listed and rated for the actual location.

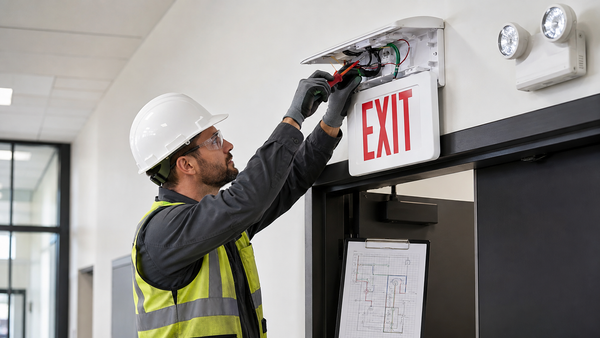

Hardwired installation and branch-circuit work should be performed by qualified personnel in accordance with the manufacturer’s instructions and locally adopted electrical requirements.
Self-testing and self-diagnostic equipment
Self-testing emergency lights and exit signs can automate scheduled functional checks and indicate faults through LEDs, displays, audible signals, or stored diagnostic information. UL 924 evaluation of applicable controls helps establish that the feature operates as part of the listed equipment, but self-test capability does not eliminate the owner’s responsibility to inspect equipment, respond to faults, maintain records, and meet local testing rules.
When comparing self-testing products, verify:
- Which tests are initiated automatically and how often
- How a failed lamp, battery, charger, or transfer function is indicated
- Whether results must be read at each fixture or can be monitored centrally
- How a manual test is initiated
- Whether the feature changes the inspection procedure accepted by the AHJ
Emergency ballasts and LED emergency drivers
An emergency ballast or LED driver converts a portion of a normal luminaire into emergency equipment. Selection cannot be based on input voltage alone. The emergency device must be compatible with the exact lamp or LED load, luminaire construction, test switch, charging indicator, temperature range, and intended emergency output.
A component bearing its own certification does not automatically make every field-created combination acceptable. Follow the emergency device’s installation instructions and compatibility documentation, and verify any required luminaire markings or field-evaluation conditions. See our emergency ballasts and LED drivers selection guide for a detailed comparison.
Remote heads and connected loads
A remote-capable emergency unit is listed for a defined connected load. Adding heads beyond that capacity can reduce output or operating time. Match the head voltage, wattage, environment, polarity where applicable, and maximum load specified by the power unit. Conductor length and voltage drop also affect performance.
Do not assume that two products are compatible simply because their connectors fit. Use the manufacturer’s approved combinations and the unit’s marked remote capacity. Our remote-capable emergency-light guide explains load and compatibility checks.
Wet, damp, cold, and hazardous locations
A UL 924 listing does not mean that a product is suitable for every environment. Equipment installed outdoors, in washdown areas, freezers, corrosive facilities, or classified hazardous locations needs the appropriate additional construction and rating.
- Use damp- or wet-location equipment where exposure requires it.
- Confirm the listed ambient temperature range, especially for cold-weather batteries.
- Use corrosion-resistant construction where chemicals, salt, or washdown are present.
- For classified areas, verify the required Class, Division or Zone, gas/dust group, and temperature code.
For classified applications, begin with our hazardous-location lighting guide and confirm the final selection with the project engineer and AHJ.
How UL 924 relates to OSHA, NFPA 101, IBC, NEC, and ADA
| Source | Primary role | Relationship to UL 924 |
|---|---|---|
| UL 924 | Product safety and performance evaluation | Supports certification of emergency lighting and power equipment |
| OSHA 29 CFR 1910.37 | Federal workplace exit-route safeguards and sign visibility | Regulates workplace conditions; it is not a substitute for product listing or local building codes |
| NFPA 101 | Life-safety requirements for means of egress | Establishes installed-system requirements that listed equipment can help satisfy |
| IBC / IFC | Building and fire-code requirements adopted by jurisdictions | Determines where and how emergency egress systems are required in covered buildings |
| NEC Article 700 and related provisions | Electrical installation and emergency-system requirements | Governs supply, wiring, circuits, and installation rather than replacing product certification |
| ADA Standards / accessibility rules | Tactile and visual communication requirements for designated signs | Accessible tactile exit signage is a separate issue from an illuminated UL 924 exit sign |
OSHA requires workplace exit routes to remain adequately lighted and exit signs to remain visible, with specific sign illumination and lettering provisions in 29 CFR 1910.37. Accessibility rules can separately require tactile characters and braille at designated exit doors. An illuminated electrical exit sign should not automatically be treated as the required tactile door sign.
UL 924 product-selection checklist
- Confirm the product carries the appropriate certification mark for the complete equipment.
- Match the model number on the fixture to the specification sheet and certification record.
- Verify input voltage, emergency output, duration, battery type, and charging requirements.
- Select the correct face count, legend color, arrows, mounting, and viewing direction.
- Check damp, wet, cold, corrosion-resistant, or hazardous-location ratings where applicable.
- For remote heads, verify voltage, wattage, maximum connected load, and wiring limitations.
- For ballasts or drivers, verify exact lamp or LED-load compatibility.
- Confirm self-test functions and fault indicators where specified.
- Install on the required unswitched supply and follow all manufacturer instructions.
- Complete commissioning and duration testing, document results, and retain product records.
- Confirm placement and system performance with approved plans and the AHJ.
Frequently asked questions
Is every commercial exit sign required to be UL 924 Listed?
Listing requirements depend on the adopted codes, specifications, and AHJ. In typical U.S. commercial work, listed life-safety equipment is commonly required or expected, but the project team must verify the exact local requirement and approved product category.
Does a UL 924 label prove the installation is code compliant?
No. Listing addresses the product as evaluated. Code compliance also depends on correct selection, placement, wiring, aiming, illumination, testing, maintenance, and local requirements.
Can a UL-recognized component be treated as a UL Listed fixture?
Not automatically. A recognized internal component and a listed complete product represent different certification scopes. Verify the mark and certification applicable to the finished equipment.
Does UL 924 cover both exit signs and emergency lights?
Yes, the standard covers multiple categories of emergency lighting and power equipment. The applicable evaluation varies by product type and intended function.
Do self-testing fixtures eliminate manual inspections?
No. They can automate functional tests and report faults, but owners still need visual inspection, recordkeeping, corrective maintenance, and any procedures required by the adopted code or AHJ.
Authoritative references
- UL Solutions: Emergency Lighting Testing and Certification
- UL Solutions: Commercial and Professional Lighting
- OSHA 29 CFR 1910.37: Exit Route Maintenance and Safeguards
- NFPA: Free Access to Codes and Standards
- U.S. Access Board: Accessible Means of Egress
For a broader compliance overview, continue to our exit sign requirements by state guide, then verify the current locally adopted code edition and project requirements.
