Egress Lighting Requirements: Illumination, Placement and Emergency Power

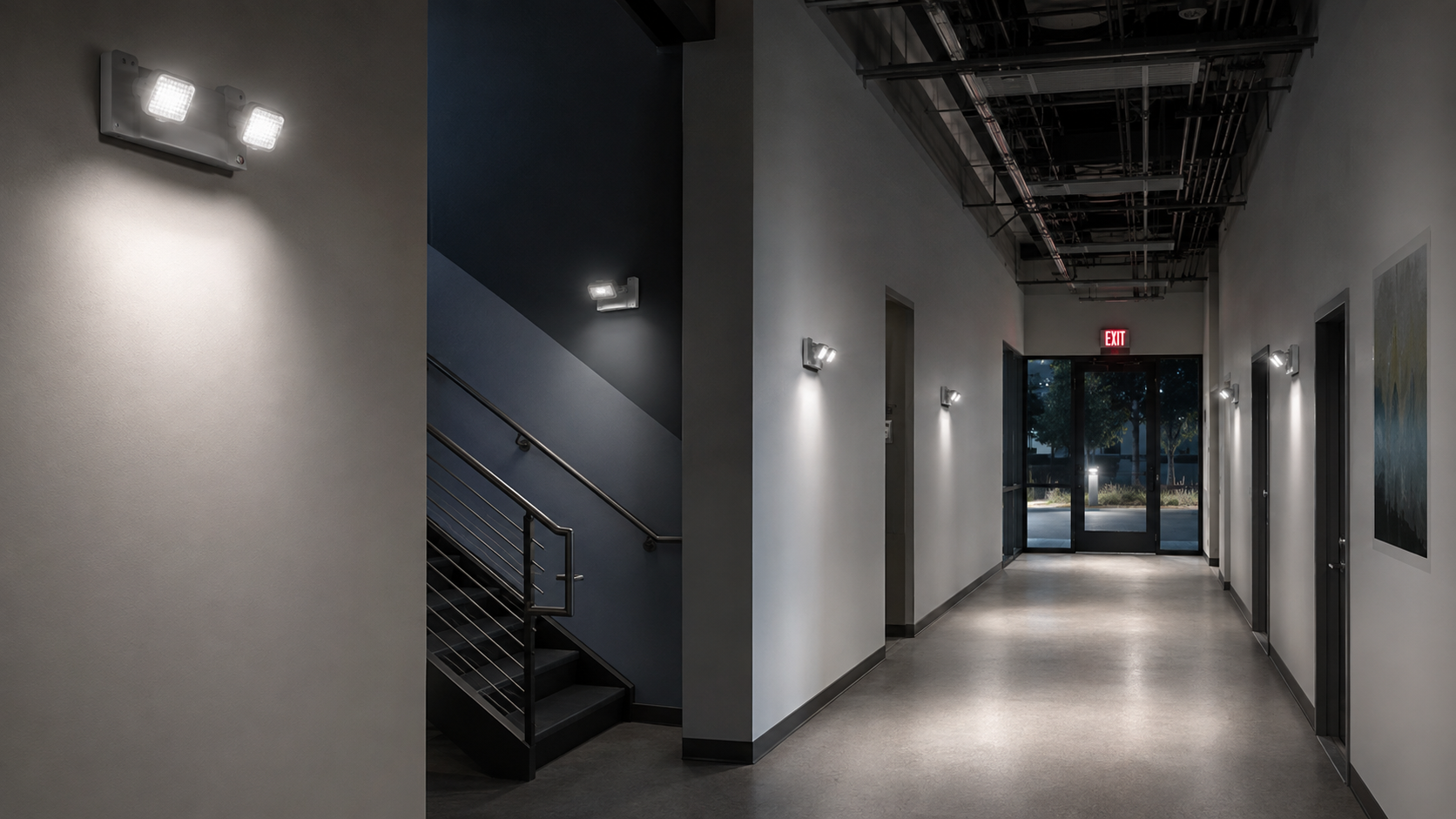

Emergency lights illuminating a commercial corridor, stair landing, and exit discharge path

Egress lighting helps occupants see and follow a safe route out of a building. It is broader than an illuminated exit sign: the lighting must support movement through the exit access, the exit itself, and the exit discharge. For a commercial project, the correct design depends on the adopted building and fire codes, occupancy, floor plan, normal lighting controls, emergency-power system, and the authority having jurisdiction (AHJ).

This guide explains the core concepts used in U.S. commercial buildings. It is practical purchasing and planning information—not a project design or approval. Always confirm the locally adopted code edition and obtain required electrical permits and inspections.

What is egress lighting?

A means of egress is the continuous path occupants use to travel from an occupied area to a public way. The U.S. Access Board describes three connected parts: exit access, exit, and exit discharge. Lighting must be considered across the entire required route, not only at the final door.

  • Exit access: rooms, aisles, corridors, ramps, and other paths leading to an exit.
  • Exit: the protected portion of the route, such as an enclosed exit stairway or exit passageway.
  • Exit discharge: the route from the exit termination to a public way, which may include exterior landings, walkways, stairs, or yards.

Exit signs identify direction and exits; egress lighting illuminates the walking path. Many projects need both. A bright EXIT legend does not by itself provide adequate light on the floor, stairs, changes in elevation, door hardware, or exterior discharge route.

Normal egress illumination versus emergency egress illumination

Normal egress lighting operates whenever the building or space is occupied. Emergency egress lighting takes over when normal power fails. They are related but not interchangeable.

Design question Normal egress lighting Emergency egress lighting
When is it active? During occupancy under normal power Automatically after loss of normal lighting power
Typical source General or dedicated luminaires Battery unit equipment, generator, inverter, or another approved standby source
Main purpose Keep the required path visibly illuminated Maintain usable illumination long enough for evacuation
Key coordination Lighting controls, occupancy schedule, daylighting, and local requirements Transfer behavior, duration, battery capacity, circuiting, testing, and maintenance

The 2021 International Building Code (IBC) states a normal means-of-egress illumination level of at least 1 foot-candle (11 lux) at the walking surface, with a higher level specified for stairs when in use. Emergency-power criteria are measured separately and allow illumination to decline over the emergency duration. Because jurisdictions adopt and amend different editions, do not assume that a number from one edition applies unchanged to every project.

Common emergency illumination benchmarks

IBC Section 1008.3.5 in the 2021 edition sets these emergency-lighting benchmarks along the path of egress at floor level:

  • Initial average illumination of at least 1 foot-candle (11 lux).
  • Initial minimum at any point of at least 0.1 foot-candle (1 lux).
  • At the end of the required duration, an average of at least 0.6 foot-candle (6 lux).
  • At the end of the required duration, a minimum at any point of at least 0.06 foot-candle (0.6 lux).
  • A maximum-to-minimum uniformity ratio not exceeding 40:1.

These figures are useful design checkpoints, but they are not a universal substitute for the adopted code. Occupancy-specific rules, healthcare provisions, local amendments, and other conditions can alter the design. The measurement plane also matters: a wall may look bright while the walking surface still contains unacceptable dark areas.

Where emergency egress lighting is commonly needed

Required locations vary by code edition and occupancy. During planning, trace every required path from occupied spaces to the public way and review at least these conditions:

  • Exit-access corridors and aisles
  • Interior and exterior exit stairways and landings
  • Exit passageways and vestibules
  • Areas around exit doors, panic hardware, and direction changes
  • Ramps and changes in elevation
  • Large rooms or open areas where the route is not defined by walls
  • Exterior exit discharge, including walks and stairs leading toward a public way
  • Rooms or spaces with occupancy-specific emergency-lighting requirements
  • The egress side of certain electrically locked doors, where required

Placement should be based on photometric performance, not a fixed “one light every X feet” rule. Ceiling height, fixture optics, lumen output, aiming, wall color, obstructions, mounting position, and the geometry of the route all affect measured illumination.

How to plan fixture placement

Corridors

Use overlapping light patterns to reduce dark gaps. Position fixtures so that turns, cross-corridors, doors, and changes in elevation remain legible. A long corridor may require multiple units even when a high-output fixture appears bright near its mounting point.

Stairways

Illuminate treads, landings, handrails, and transition points. A fixture aimed only toward a wall or the center of a landing can leave stair nosings in shadow. Check both upward and downward travel directions and avoid glare that reduces contrast.

Large open spaces

Warehouses, assembly areas, retail floors, and open offices may not have a wall-defined route. The design should follow the required egress path and account for shelving, partitions, displays, and equipment that can block light. Higher ceilings often require greater output or purpose-designed optics.

Exit discharge

Do not stop the lighting study at the exterior door. Review exterior landings, steps, ramps, weather exposure, temperature, and the route toward the public way. Use appropriately rated equipment for damp or wet locations; see our wet-location versus damp-location guide.

Remote heads and difficult locations

A remote-capable emergency unit can power heads located away from the battery enclosure. This can help cover vestibules, exterior discharge points, or adjacent spaces, but the connected wattage, voltage, wire length, voltage drop, environmental rating, and manufacturer compatibility must all be checked. Read the remote-capable emergency-lighting guide before pairing components.

Emergency-power options

System Best suited to Important checks
Self-contained unit equipment Localized coverage and straightforward retrofits Battery runtime, output, environment, mounting, connected remote load
Exit sign/emergency-light combo Locations needing both marking and nearby path illumination Head aiming, coverage, face configuration, remote capacity
Central lighting inverter Selected normal luminaires used as emergency luminaires Load type, transfer, runtime, circuit design, listing, maintenance access
Generator or central emergency system Larger buildings and centralized emergency loads Transfer time, branch circuiting, controls, testing, fuel and maintenance

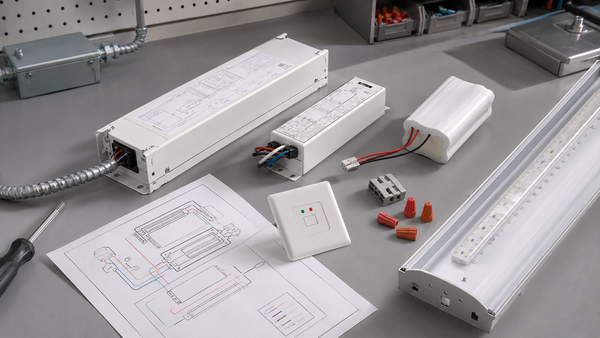

Emergency ballast or LED driver Individual compatible luminaires Lamp/driver compatibility, emergency output, wiring, charging, testing

A 90-minute emergency operating period is a common benchmark in U.S. life-safety codes. NFPA’s guidance explains that emergency lighting is designed to illuminate automatically for at least 90 minutes following loss of normal lighting power. Confirm the applicable duration and performance for the project and verify that the complete system—not merely the battery label—delivers the required light level through the end of the test.

For product selection, compare commercial emergency lights, exit sign and emergency-light combo units, and the broader commercial emergency-lighting guide.

Exit signs are a separate requirement

OSHA requires exit routes to be adequately lighted so an employee with normal vision can see along the route. OSHA also separately addresses exit-sign visibility and illumination. This distinction matters: lighting the sign face is not the same as lighting the path.

Exit signs should remain visible, unobstructed, and correctly directional from the approach path. A change in direction can require additional marking. For sign placement and compliance considerations, review the exit sign requirements by state guide and exit sign placement guide.

How to verify illumination

  1. Confirm the governing criteria. Record the adopted code edition, local amendments, occupancy, and AHJ direction.
  2. Map the required route. Mark exit access, exit, and exit discharge on the plan.
  3. Identify measurement points. Include anticipated low points, corners, landings, stairs, and areas between fixtures.
  4. Simulate failure of normal lighting. Test the condition that causes emergency lighting to transfer; do not rely only on a glowing status indicator.
  5. Use a calibrated light meter. Measure at the plane required by the applicable code, commonly the floor or walking surface.
  6. Measure early and late. Initial readings alone do not show whether the system maintains performance through the required duration.
  7. Record the results. Note location, time, measured level, fixture condition, and corrective action.

Photometric calculations are valuable before installation, especially in high-ceiling or irregular spaces. Field measurements confirm actual conditions after installation and account for aiming, finishes, obstructions, aging, and voltage conditions.

Common design and installation mistakes

  • Treating exit signs as path illumination
  • Ending emergency coverage at the exterior door
  • Spacing fixtures by habit instead of photometric performance
  • Leaving stairs, corners, or door hardware in shadow
  • Connecting emergency equipment to switched power that can disable charging
  • Adding remote heads without checking maximum connected load
  • Using indoor equipment in damp, wet, cold, or hazardous locations
  • Testing only for activation rather than the required duration and light level
  • Failing to update the layout after partitions, shelving, or equipment change

Egress-lighting selection checklist

  • Locally adopted building, fire, electrical, and life-safety codes identified
  • Occupancy and required means-of-egress routes confirmed
  • Normal and emergency illumination criteria documented separately
  • Corridors, stairs, ramps, doors, changes in direction, and exterior discharge reviewed
  • Fixture photometrics, lumen output, mounting height, and aiming evaluated
  • Battery, generator, inverter, or central-system capacity verified
  • Remote-head voltage, wattage, wire distance, and environmental rating checked
  • Emergency equipment supplied from the required unswitched or designated circuit
  • Initial and end-of-duration field measurements planned
  • Inspection, testing, recordkeeping, and battery replacement responsibilities assigned

Frequently asked questions

Is egress lighting the same as emergency lighting?

Not exactly. Egress lighting describes illumination of the means-of-egress path. It operates under normal conditions and, where required, must continue through an approved emergency source when normal lighting fails.

How many emergency lights do I need?

There is no reliable universal spacing rule. The quantity depends on the route geometry, required light levels, fixture photometrics, mounting height, obstructions, surface reflectance, and applicable code. Use photometric calculations and verify the completed installation with measurements.

Does emergency lighting have to cover the exterior?

Often the required exit discharge extends beyond the door. Exterior landings, stairs, ramps, and portions of the path toward a public way may require illumination. Confirm the exact extent with the adopted code and AHJ.

Can a combo exit sign light the whole corridor?

Sometimes a combo unit can cover the nearby path, but its two heads are not automatically sufficient for a long corridor or stairway. Evaluate actual emergency output and distribution, then add units or compatible remote heads where needed.

Who should design or approve the system?

A qualified electrical or life-safety professional should design project-specific systems where required. The AHJ determines acceptance under the locally adopted codes. Hardwired installation should follow manufacturer instructions and be performed by qualified personnel.

Authoritative references

Codes change and jurisdictions may amend model-code language. Verify the edition and local requirements that apply to the building before purchasing, specifying, or installing equipment.
