Choosing the right exit sign or emergency light comes down to a handful of technical decisions: how the sign produces light, what battery chemistry backs it up, what voltage and power source the installation uses, and what environmental rating the housing needs. Getting these right matters as much as meeting the underlying code requirement (see our code requirements guide). This guide explains each decision and links to detailed comparisons for further reading.
The Core Technical Decisions
Every exit sign and emergency light purchase involves the same set of underlying decisions, whether or not the buyer thinks of it that way: illumination technology (how the sign produces light), battery chemistry and power source (what keeps it running during an outage), housing and environmental rating (what conditions it needs to survive), and physical format (mounting, color, face count). The sections below cover each in turn, with links to focused comparisons for the specific choice in front of you.

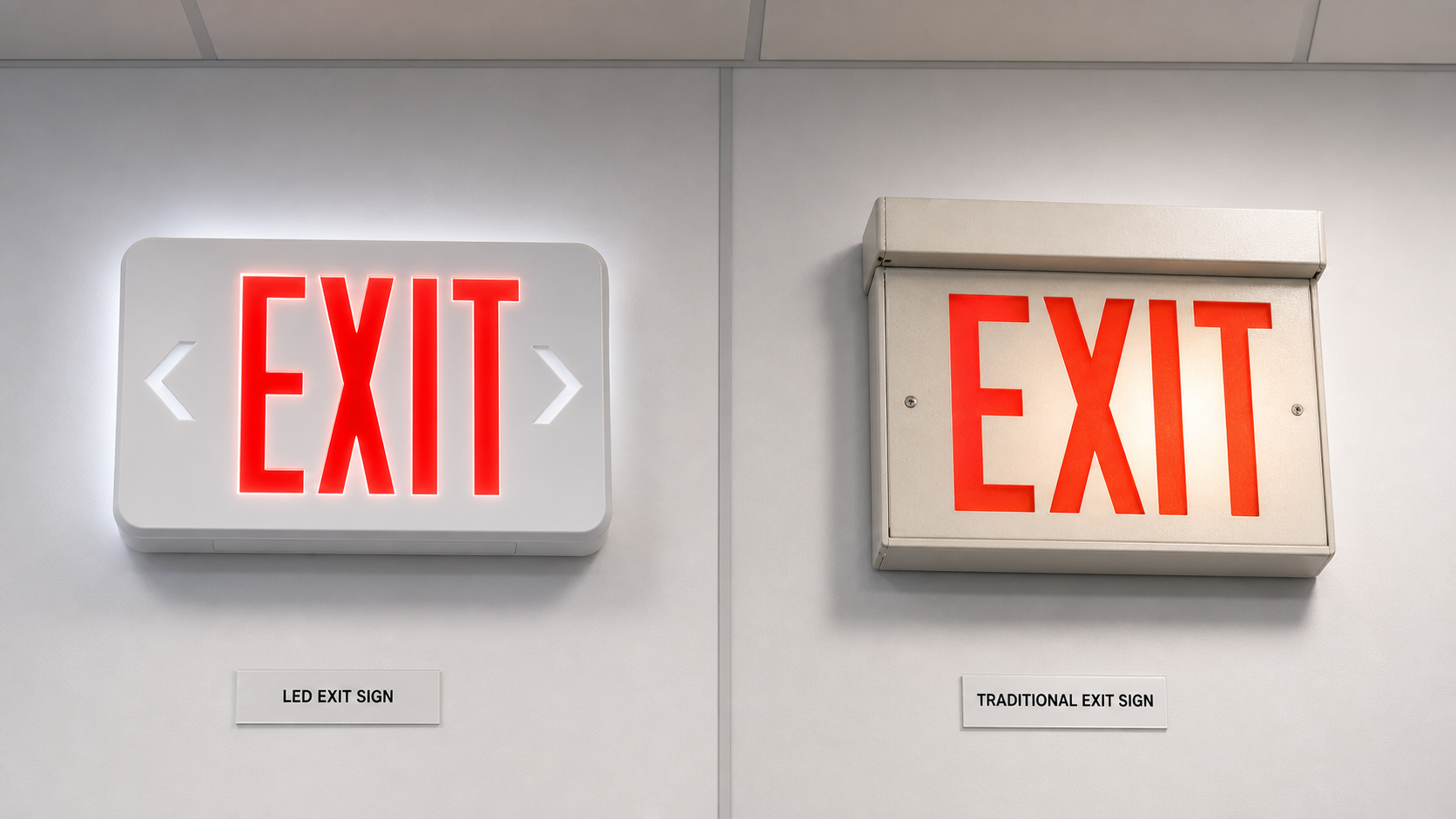

LED vs. Traditional: The Foundational Technology Choice
LED exit signs have become the standard choice for most new installations because they use less energy and last longer than older lamp-based signs, which reduces both electricity costs and the frequency of lamp replacement. Traditional incandescent or fluorescent signs are less common in new construction now but still appear in older buildings, and replacing one during a renovation is one of the more straightforward upgrades a facility team can make. The tradeoff isn't really about performance at this point; LED has largely won on efficiency and maintenance cost. It's more about matching the fixture to the project: a straightforward LED replacement fits most cases, with traditional signage sometimes retained temporarily in older buildings where a full retrofit isn't yet planned.
Illumination Technology Options Beyond LED
A few other illumination technologies show up in specific situations. Tritium exit signs use a self-luminous gas that requires no electricity or battery at all, which makes them useful in remote locations or buildings without reliable power access, though they come with their own regulatory handling and disposal considerations. Photoluminescent signs absorb ambient light and glow in the dark without any power source, making them an option in low-light-sensitive spaces like restaurants where a lit sign face would clash with the design (see our building-type guide for more on this). Edge-lit signs route light along the edge of a panel for a slimmer, more design-conscious profile, often chosen for guest-facing spaces over a standard boxed housing. See tritium vs LED exit signs, self-luminous vs photoluminescent exit signs, photoluminescent exit signs: glow in the dark, and edge-lit vs standard exit signs for the detailed comparisons.
Exit Sign Battery Types Explained
Most electric exit signs and emergency lights rely on one of three common battery chemistries. Nickel-cadmium (NiCad) batteries are a long-established choice known for tolerating a wide temperature range, though they have a lower energy density than newer chemistries and can develop a reduced-capacity "memory effect" if not periodically fully discharged. Sealed lead-acid (SLA) batteries are common in larger emergency lighting units, generally lower cost, but heavier and bulkier for the same capacity. Lithium-based batteries have become more common in newer fixtures, generally offering higher energy density and a smaller package, typically at a higher upfront cost.
The right chemistry for a given fixture is usually determined by the manufacturer's design rather than something a buyer selects independently, but understanding the tradeoffs helps when comparing similar products or troubleshooting unusually short battery life (see our battery replacement guide). Always check the specific product's documentation for its actual battery type and rated runtime rather than assuming based on fixture category alone.
Voltage and Power Source Explained
Commercial buildings in North America commonly run on one of two standard voltages: 120V, typical of smaller commercial and residential-adjacent wiring, and 277V, common in larger commercial and industrial buildings on three-phase electrical systems. Exit signs and emergency lights are generally available in models built for one or the other, and sometimes dual-voltage models that accept both, so confirming the building's electrical system before ordering avoids a mismatch. Beyond line voltage, fixtures also differ in backup power source: most use an internal battery, but some larger installations rely on a central battery system or generator-backed emergency power instead of individual fixture batteries. See exit sign battery backup for more on what backup power is expected to do, and do exit signs need to be hardwired for how power source relates to installation method.
NEMA and IP Ratings Explained
NEMA ratings and IP (Ingress Protection) codes are two different systems for describing how well an enclosure resists dust and moisture, and both show up on exit sign and emergency light spec sheets. IP codes use a two-digit format: the first digit rates protection against solid objects and dust, the second against water, so a higher number in each position means better protection. NEMA ratings use a different, U.S.-specific numbering system (such as NEMA 3R or NEMA 4X) that maps roughly, but not exactly, to IP equivalents. Neither system alone tells you whether a fixture is right for a specific location; a damp interior corridor, a covered exterior walkway, and a direct-exposure exterior wall can all call for different ratings even though none of them is a fully sealed industrial environment. See NEMA-rated exit signs: when do you need one and wet-location vs damp-location exit signs and emergency lights for how to match the rating to the specific installation.
Housing, Mounting, and Format
Steel vs. Thermoplastic Housing
Steel housings are more impact- and vandal-resistant, which matters in public corridors, stairwells, and industrial settings with higher physical wear. Thermoplastic housings are lighter, less expensive, and resistant to corrosion, which makes them a common default for standard interior installations without heavy physical exposure. See steel vs thermoplastic exit signs for the fuller comparison.
Wall vs. Ceiling Mounting
Wall-mounted signs are the most common configuration, typically installed above a door or along a corridor wall. Ceiling mounting is more common where wall space is limited or where a sign needs to be visible from multiple approach angles in an open area. See ceiling-mount vs wall-mount exit signs.
Single-Face vs. Double-Face
Single-face signs display in one direction and are the standard choice above a door with a single approach. Double-face signs are visible from two directions, useful for ceiling-mounted signs in open areas or corridor intersections where occupants approach from more than one side. See single-face vs double-face exit signs.
Sign Color: Red vs. Green
Red is the more common color across much of the U.S., while green is standard in Canada and common in pictogram-based signage. Neither is universal, and the correct choice depends on what's accepted locally (see our code requirements guide) more than personal preference. See red vs green exit signs for the fuller comparison.
Emergency Light Head Configuration
Emergency light heads come in adjustable and fixed configurations. Adjustable heads can be aimed at installation to direct light along a specific path of travel, which is useful in irregular layouts or where the exact coverage area isn't obvious until the fixture is mounted. Fixed heads are simpler and less expensive but commit to a single illumination pattern from installation. Remote-head units connect additional light heads to a central power supply, extending coverage across a larger area from one power source, compared to standard units where the power supply and light head are part of the same fixture. See adjustable emergency lights vs fixed head units and remote head emergency lights vs standard emergency lights for the detailed comparisons.

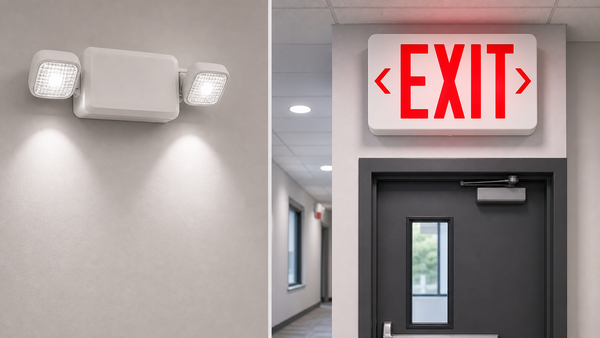

Combining Exit Signs and Emergency Lighting: The Technical Tradeoffs
Combo units integrate exit sign and emergency lighting functions into a single fixture, which simplifies installation and reduces the number of devices to maintain, but the illumination range from a combo unit's light heads is typically more limited than a dedicated emergency light designed for wider coverage. Whether that tradeoff is worth it depends on the space (see our building-type guide for the space-planning angle); from a purely technical standpoint, combo units suit smaller rooms and short corridors well, while larger open areas and long corridors usually get better, more even coverage from separate dedicated fixtures. See exit sign with emergency lights: when to choose a combo unit and emergency lights vs exit signs: what's the difference for more.
How to Read a Spec Sheet
Once you know which decisions matter for your project, a product spec sheet should answer all of them: listing or certification (UL 924 or ULC S572), voltage, battery chemistry and rated duration, environmental rating (NEMA or IP code), housing material, mounting type, and face configuration. If a spec sheet is missing one of these, particularly battery duration or environmental rating, that's worth asking about directly rather than assuming a default. Comparing two similar-looking signs side by side on these fields is a more reliable way to choose than comparing on price or appearance alone.
Common Technical Buying Mistakes
The most common technical mistakes are ordering the wrong line voltage for the building's electrical system, assuming a standard indoor-rated fixture will hold up in a damp or exterior location, choosing a battery-backed sign without confirming the rated duration meets code requirements, and picking a housing material based on appearance without considering the location's actual physical exposure. Checking the full spec sheet against the installation environment before ordering, rather than relying on a general fixture category, avoids most of these.
Product Comparison Guides
All the detailed technical comparisons in one place:
- Tritium Exit Signs vs LED Exit Signs
- Self-Luminous vs Photoluminescent Exit Signs
- Photoluminescent Exit Signs: Glow in the Dark
- Edge-Lit vs Standard Exit Signs
- NEMA-Rated Exit Signs: When Do You Need One?
- Wet-Location vs Damp-Location Exit Signs and Emergency Lights
- Steel vs Thermoplastic Exit Signs
- Ceiling-Mount vs Wall-Mount Exit Signs
- Single-Face vs Double-Face Exit Signs
- Red vs Green Exit Signs
- Adjustable Emergency Lights vs Fixed Head Units
- Remote Head Emergency Lights vs Standard Emergency Lights
- Exit Sign with Emergency Lights: When to Choose a Combo Unit
- Emergency Lights vs Exit Signs: What's the Difference
For the code requirements behind battery duration, voltage, and environmental ratings, see our exit sign code requirements by state guide. For building-specific guidance on which technical choices fit your space, see choosing exit signs by building type. For maintenance and troubleshooting once a fixture is installed, see our maintenance and troubleshooting guide. For help matching a spec to your project, visit the Exit Sign & Emergency Lighting Learning Center or contact our team.
